ChouMag Grate Magnets in Housing
effectively remove ferrous fragments and fines from free-flowing material. They are designed for ferrous metal separation in a wide variety of dry processing applications. Housings are constructed 304 or 316L stainless steel. Wild stainless steel can be provided on request. Strong magnetic grates inside filter the flow and extract the unwanted ferrous metal. They are widely used in food industry and chemical industry. Inside the housing, it can be one layer, two layers or more layers high intensity magnetic grates in frames. To initiate cleaning, the operator pulls two handles on the front of the housing, removing the magnetic drawer from the product flow. As the drawer is pulled out, you can wipe off the accumulated metal from the tubes into a catch box for disposal.

The easy-clean version grate magnets in housing are designed to simplify the cleaning process to encourage frequent and quick removal of collected tramp metal. Cleaning of the magnets is easily accomplished by removing the tube casing of the grates and sliding out each magnet assembly.

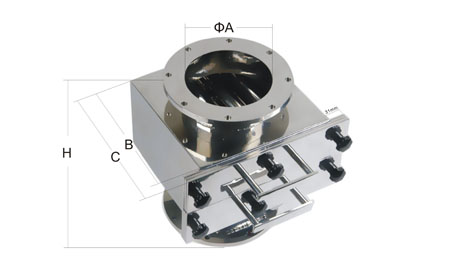

Circular Fitting



Circular fitting°™Single row version

Part No.

A

B

C

H

CMhousing-C-S-100

100

160

175

200

CMhousing-C-S-150

150

210

225

200

CMhousing-C-S-200

200

260

275

200

CMhousing-C-S-250

250

310

325

220

CMhousing-C-S-300

300

360

375

220

CMhousing-C-S-350

350

410

425

250

CMhousing-C-S-400

400

460

475

250

All dimensions in mm. Other dimensions can be provided on request.

Circular fitting°™Double row version

Part No.

A

B

C

H

CMhousing-C-D-100

100

160

175

220

CMhousing-C-D-150

150

210

225

250

CMhousing-C-D-200

200

260

275

250

CMhousing-C-D-250

250

310

325

300

CMhousing-C-D-300

300

360

375

300

CMhousing-C-D-350

350

410

425

330

CMhousing-C-D-400

400

460

475

330

All dimensions in mm. Other dimensions can be provided on request.

Square Fitting


Square fitting°™single row version

Part No.

A=B

C=D

H

CMhousing-S-S-100

100

180

200

CMhousing-S-S-150

150

230

200

CMhousing-S-S-200

200

280

200

CMhousing-S-S-250

250

330

220

CMhousing-S-S-300

300

380

220

CMhousing-S-S-350

350

430

220

CMhousing-S-S-400

400

480

220

All dimensions in mm. Other dimensions can be provided on request.

Square fitting°™double row version

Part No.

A=B

C=D

H

CMhousing-S-D-100

100

180

200

CMhousing-S-D-150

150

230

200

CMhousing-S-D-200

200

280

200

CMhousing-S-D-250

250

330

220

CMhousing-S-D-300

300

380

220

CMhousing-S-D-350

350

430

220

CMhousing-S-D-400

400

480

220

All dimensions in mm. Other dimensions can be provided on request.

Feature and Construction
  1. It is equipped with high-energy Rare-earth Magnets. Diameter of magnetic bar is 1". All of magnetic bars are waterproof.
  2. Construction uses Type 304 stainless steel. Type 316 stainless steel available on request.
  3. Optional for Easy-clean version or manual cleaning version.
  4. Condition: Well polished.
