Home > Products > Magnetic Separators > Drawer Magnet for Plastic Processing
ChouMag Drawer Magnets provide valuable protection for injection molding machines, blow molding machines, and extruders. They are primarily used in plastic progressing to prevent tramp metal damage. These drawer magnets provide economical continuous protection against costly machine downtime for all types of plastic resin processing machinery. Mounted directly on the feed throat of your plastic processing equipment, tramp metal is stopped from flowing into the machine by powerful magnets. Drawer magnets are available in different styles to suit specific application needs.

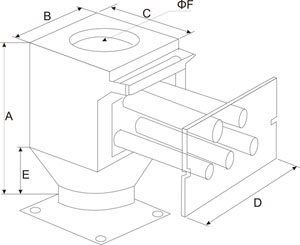

Part No.

Number of magnetic bar

Dimension (mm)

A

B x C

D

E

F

CMdrawer-100

3

265

100x100

165

65

22

CMdrawer-150

5

270

150x150

216

70

45

CMdrawer-200

7

275

200x200

267

75

79

CMdrawer-250

9

280

250x250

317.5

80

100

OEM orders & Customer Designed Applications are also welcomed.

Construction:

  1. Stainless Steel Construction. Mild steel available on request.
  2. Surface processing: Polishing and Painting for your choice.
  3. Normally, it is equipped with high density Ceramic 8 magnets. High-energy Rare-earth magnets are needed when you come across a difficult job.
  4. all of magnetic bars are waterproof.
